2009-2015 Mazda MX-5 Miata (Gen 3, NC2/NC3) ECU Tuning Software and Ready to Flash Tunes
Engine: 2.0l MZR LF-VE
All regions supported, including USDM, EUDM, JDM and AUDM.
Manual and automatic transmissions supported.
VersaTuner is tuning software for Mazda vehicles. It is a Windows application that allows reflashing/remapping (chip tuning) of Gen 3 Mazda MX-5 Miata engine ECUs, data logging, tune editing and diagnostics.
Unlike other apps that target only professional tuners, VersaTuner makes Gen 3 Mazda MX-5 Miata 2.0l MZR LF-VE tuning accessible to everyone. Included dyno-tested prebuilt tunes allow adding horsepower or increasing fuel economy with just a few clicks. More experienced users can use the Tune Editor to get access to dozens of adjustable engine tables, maps and parameters. Professional tuners can use VersaTuner Professional to tune multiple vehicles and build locked and encrypted tunes that protect their Mazda tuning know-how.
VersaTuner can be ordered globally and can be downloaded immediately after purchasing. All you need is a Windows laptop or tablet, a compatible hardware interface (cable) to connect your computer to the car and you can start tuning your Gen 3 Mazda MX-5 Miata today.
Gen 3 Mazda MX-5 Miata Tuning Made Easy
VersaTuner has been carefully designed to be easy to understand for first time users and at the same time allows experienced tuners to work efficiently. All features are accessible from one Windows app with a sleek and modern user interface. Guides and wizards lead you through the important processes. The UI is optimized both for touch-based use on tablets as well as laptops and desktop PCs.
Safe and Reliable
VersaTuner is a true reflashing (remapping/chip tuning) solution for the Gen 3 Mazda MX-5 Miata, not a "piggyback" controller. No wires need to be spliced and all built-in safety features of the ECU are retained. It uses the same flashing methods that are used by dealerships when updating your ECU. Built in recovery feature can flash the ECU even in the unlikely event of power failure. Your stock calibration is backed up, so you can go back to stock at any time.
Online Tune Database
A growing selection of prebuilt Gen 3 Mazda MX-5 Miata tunes is available right from the app. If you have a stock or mildly modified vehicle, flash a suitable tune with a couple of clicks and enjoy. All our tunes were developed on real vehicles and their performance gains were measured on a chassis dyno. Our tunes can also be downloaded and edited and serve as a great starting point for custom or high power tunes. With our prebuilt tunes, Gen 3 Mazda MX-5 Miata tuning has never been easier!
Tune Editor
VersaTuner includes an advanced tune editor allowing you to edit a multitude of tables, maps and constants and customize existing or create custom tunes for your Gen 3 Mazda MX-5 Miata. It comes with a ton of productivity features, such as tune comparison, visualization, interpolation and automated translation of descriptions to 110+ languages.
Dashboard & Log Viewer
Virtual dashboard allows you to view and record all the vital engine parameters simultaneously. Analyze recorded logs later using a graphical log viewer or export them to Excel or Virtual Dyno.
Diagnostics
Read and clear DTCs from multiple modules, not just your engine ECU. A vast number of standard and Mazda-specific DTCs is supported.
Features & Extras
More Power, Faster Acceleration
VersaTuner allows you to safely and easily increase the horsepower and torque of your engine. That results in faster launches and better 0-60/0-100 times.
After driving a tuned car you will never want to go back to stock again!*
* going back to stock only takes a couple of minutes with VersaTuner, when neededFull Potential of Modifications
Have you fitted an uprated intake or intercooler? A bigger turbo and exhaust?
On modern cars, upgrading parts alone will not have a significant effect unless accompanied by changes in ECU tuning. VersaTuner allows you to realize the full potential of your mods. Update the tune easily as you add new parts in the future.
Push the Limits
- Eliminate the artificial power limits of the stock ECU
- Change the speed limiter
- Change the rev limiter
- Make accelerator pedal more responsive
- Use uprated sensors and MAF housings
Crackle and Pop Tunes
We have built crackle and pop (also known as pop and bang) versions of our performance tunes, if you are looking for a head-turning sound when you release the accelerator. The tuning is well within the safe limits and should not cause any damage to your engine. And you can use the tune editor to customize the intensity levels or add crackle and pop to your custom tunes, too.
Disable Immobilizer
Do you have a full race car with minimal electronics? You can disable the immobilizer and run the engine without supporting modules like keyless entry or ignition key switches.
Special Tunes
Anti-theft tune will prevent the car from starting and keep the intruder confused, offering you peace of mind when you need to leave the car for a long time.
Valet tune significantly reduces the power and speed of the car and is perfect for those situations when someone needs to borrow your precious vehicle.
Available Gen 3 Mazda MX-5 Miata (2.0l MZR LF-VE) Tunes
This is a list of currently available free VersaTuner tunes for 2009-2015 Mazda MX-5 Miata (Gen 3, NC2/NC3) with the 2.0l MZR LF-VE engine. All these tunes can be flashed both with VersaTuner Lite and the full version. These tunes were professionally developed on real cars and their performance was measured on a chassis dyno. New tunes are regularly added based on demand. If you can't find a suitable tune, you can contact a professional tuner or an e-tuner working with VersaTuner. You can also create a custom tune yourself with the full version of VersaTuner, using any of these tunes as a starting point.
Stage I performance tune for stock NC2 and NC3 MX-5 Miata. Optimized spark and fuel for increased power. 93 US or 98 EU Octane recommended. Decel crackle and pop is enabled. Not recommended for vehicles with damaged, old, or questionable catalytic converters.
Stage I performance tune for stock NC2 and NC3 MX-5 Miata. Optimized spark and fuel for increased power. 93 US or 98 EU Octane recommended. Decel crackle and pop is enabled. Not recommended for vehicles with damaged, old, or questionable catalytic converters.
Stage I performance tune for stock NC2 and NC3 MX-5 Miata. Optimized spark and fuel for increased power. 93 US or 98 EU Octane recommended.
Editable Tables and Constants
Full version of VersaTuner includes a tune editor that allows you to change the aspects of your Mazda ECU operation related to power delivery and fuel efficiency. Tuning your Gen 3 Mazda MX-5 Miata ECU is done by changing the tables and constants that the ECU uses internally to calculate load targeting, fueling, injection, ignition, interpret sensor values, etc.
A list of all currently available tables and constants (also known as maps) for tuning the Gen 3 Mazda MX-5 Miata ECU is provided below. As we continue to analyze the ECU logic and develop new tunes, we may make new maps available.
NOTE: The exact list of tables available for your car may vary depending on the ECU manufacturer and software version.
- CL OL APP Threshold (1D)
- CL OL APP Threshold 1 (2D)
- CL OL APP Threshold 2 (2D)
- CL OL APP Threshold 3 (2D)
- CL OL Load Threshold 1 (2D)
- CL OL Load Threshold 2 (2D)
- CL OL Load Threshold 3 (2D)
- CL OL Load Threshold 4 (2D)
- CL OL Load Threshold 5 (2D)
- CL OL Maximum RPM (1D)
- CL OL Minimum RPM (1D)
- CL OL Transition Timer (2D)
- MAF Volts Range Lower Limit Check (1D)
- MAF Volts Range Upper Limit Check (1D)
- Max DBW Throttle Duty Cycle (1D)
- Operating Load Limit 1 (2D)
- Operating Load Limit 2 (2D)
- Rev Limiter - Normal (1D)
- Rev Limiter - Throttle Reduction 1 (1D)
- Rev Limiter - Throttle Reduction 2 (1D)
- Vehicle Speed Limit Minimum RPM (1D)
- Vehicle Speed Limit Minimum RPM Threshold (1D)
- Vehicle Speed Limiter (1D)
- Catalyst Temp Calculated - AFR Correction (2D)
- Catalyst Temp Calculated - Base (3D)
- Decel Fuel Cut Load Threshold (2D)
- Decel Fuel Cut RPM Threshold (1D)
- Heat Soak Fuel Compensation (3D)
- High Load Enleanment (3D)
- Injector BARO MAP Delta Compensation (2D)
- Injector Base PW (1D)
- Injector Cranking PW (2D)
- Injector Minimum PW (1D)
- Injector Opening Time (3D)
- Injector Scaling Global (1D)
- Injector Scaling Maybe 2 (1D)
- Long Term Fuel Trim Partition 1 (1D)
- Long Term Fuel Trim Partition 2 (1D)
- Long Term Fuel Trim Partition 3 (1D)
- Long Term Fuel Trim Partition 4 (1D)
- Long Term Fuel Trim Partition 5 (1D)
- Long Term Fuel Trim Partition 6 (1D)
- Open Loop Part Throttle AFR Target 1 (3D)
- Open Loop Part Throttle AFR Target 2 (3D)
- Open Loop Part Throttle AFR Target 3 (3D)
- Open Loop WOT AFR Target 1 (3D)
- Open Loop WOT AFR Target 2 (3D)
- Open Loop WOT AFR Target 3 (3D)
- Gear Ratio 1 (1D)
- Gear Ratio 2 (1D)
- Gear Ratio 3 (1D)
- Gear Ratio 4 (1D)
- Gear Ratio 5 (1D)
- Gear Ratio 6 (1D)
- Ring and Pinion Ratio (1D)
- Idle RPM - In Gear (2D)
- Idle RPM - Neutral (2D)
- Ignition Coil Dwell (3D)
- Knock Retard Increment Maybe (1D)
- Knock Retard Maximum RPM (1D)
- Knock Retard Maximum RPM Hysterisis (1D)
- Knock Retard Minimum ECT (1D)
- Knock Retard Minimum ECT Hysterisis (1D)
- Knock Retard Minimum RPM (1D)
- Knock Retard Minimum RPM Hysterisis (1D)
- Timing - Closed Loop Knocking (3D)
- Timing - Closed Loop Normal (3D)
- Timing - ECT IAT Adjustment 1 (3D)
- Timing - ECT IAT Adjustment 2 (3D)
- Timing - ECT IAT Adjustment Multiplier (3D)
- Timing - Idle 1 (3D)
- Timing - Idle 2 (3D)
- Timing - Max 1 (3D)
- Timing - Max 2 (3D)
- Timing - Min 1 (1D)
- Timing - Min 2 (1D)
- Timing - Min 3 (1D)
- Timing - Min 4 (1D)
- Timing - Min 5 (1D)
- Timing - Open Loop Knocking (3D)
- Timing - Open Loop Normal (3D)
- Timing - Overall Max (1D)
- Timing - Warmup Adjustment 1 (3D)
- Timing - Warmup Adjustment 2 (3D)
- Timing - Warmup Adjustment 3 (3D)
- Volumetric Efficiency Load Multiplier (3D)
- Engine Displacement 1 (1D)
- Engine Displacement 2 (1D)
- Intake Manifold Runner Control Threshold 1 (1D)
- Intake Manifold Runner Control Threshold 2 (1D)
- Intake Manifold Runner Control Threshold Hysterisis 1 (1D)
- Intake Manifold Runner Control Threshold Hysterisis 2 (1D)
- 2.5l Engine Swap (BlockToggle)
- Disable Decel Fuel Cut (BlockToggle)
- ECT Sensor Calibration (2D)
- IAT Sensor Calibration (2D)
- Knock Sensor Calibration (2D)
- MAF Sensor Calibration 1 (2D)
- MAF Sensor Calibration 2 (2D)
- MAP Sensor Muliplier (1D)
- MAP Sensor Offset (1D)
- Wideband Oxygen Sensor Calibration (2D)
- APP to DBW Throttle Duty Cycle Gear - 1 (3D)
- APP to DBW Throttle Duty Cycle Gear - 2 (3D)
- APP to DBW Throttle Duty Cycle Gear - 3 (3D)
- APP to DBW Throttle Duty Cycle Gear - 4,5,6 (3D)
- APP to DBW Throttle Duty Cycle Gear - Neutral (3D)
- APP to DBW Throttle Duty Max (2D)
- APP to DBW Throttle Duty Min (2D)
- Variable Valve Timing (3D)
Logging Parameters
When you need to analyze how your Mazda performs before or after ECU tuning, you will drive the car and record the values of different parameters. All editions of VersaTuner (even Free!) include important Mazda-specific logging parameters that are available to official Mazda service centers and are not usually included in cheap universal logging devices or apps.
Here is a list of all currently available data logging parameters (also known as PIDs) for your Gen 3 Mazda MX-5 Miata.
- Intake manifold absolute pressure
- MAP sensor voltage
- Fan 1 and 2 status
- Fan 3 status
- Actual equivalence/air to fuel ratio
- Desired equivalence/air to fuel ratio
- Fuel injection pulse width
- Fuel injection pulse width (Percent) BETA
- Fuel system status
- Long term fuel trim
- Short term fuel trim (primary sensor)
- Short term fuel trim (secondary sensor)
- Absolute load
- Accelerator pedal position
- Actual valve timing
- Ambient air temperature
- Barometric pressure
- Clutch pedal position
- Control module voltage
- Desired engine RPM
- Desired throttle position
- Engine coolant temperature
- Engine RPM
- Intake air temperature
- Mass air flow
- Mass airflow sensor voltage
- Neutral gear status
- Relative throttle position
- Vehicle speed
- Ignition timing advance
- Knock retard
- Actual throttle angle
- Desired throttle angle
- Idle air control

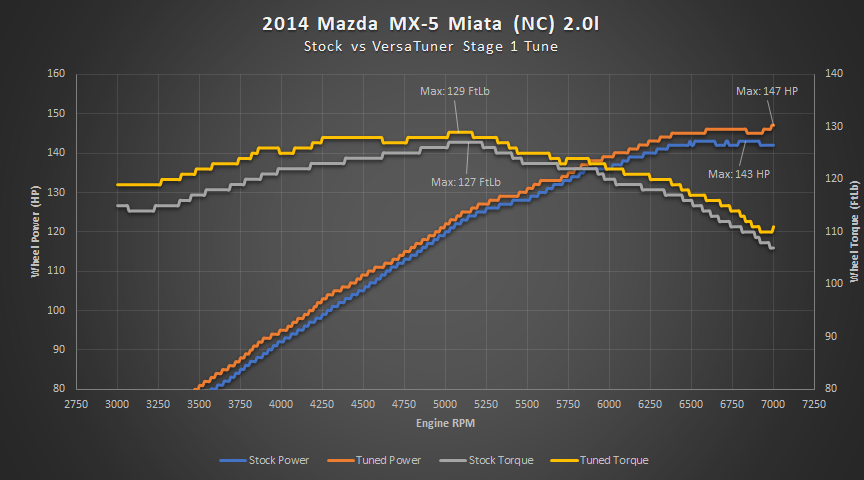

Dyno Graphs
| Car tested: | 2014 Mazda MX-5 Miata (NC) 2.0l |
| Car modifications: | None |
| Dyno type: | Chassis dyno |
| Power measured: | Wheel power |
| Fuel type: | Pump gas, octane rating 93 (RON+MON)/2, equivalent to 98 RON |
| Reference tune: | Factory tune |
| Target tunes: | MX-5 NC2 NC3 Stage I for Stock Car 93US 98EU Octane |
Would you like to try VersaTuner tuning software yourself?
Download the demo version based on full version features available for Mazdaspeed6/Mazda 6 MPS.
The demo does not connect to the car, it only lets you evaluate the user experience.
Pricing
VersaTuner comes in different editions. You can choose the one that works best for you:
VersaTuner FreeLogging and diagnostics for everyone
- Virtual dashboard with model-specific parameters
- Sound and visual alerts to keep the car running safe
- Record unlimited data logs
- Visual data log analyzer
- Read and clear DTCs
- Works with all supported vehicles
VersaTuner Lite Reflash your car without breaking the bank
- Includes all features of VersaTuner Free
- Free online tune database
- Flash all available prebuilt tunes
- Flash tunes built by our professional tuning partners
- Locked to one car
- Unlimited reflashes
- Upgrade to full version at any time**
Seller
VersaTuner Full custom tuning capability
- Includes all features of VersaTuner Free and Lite
- Tune editor with access to all tables and constants
- Flash any tunes, including custom and unofficial
- Create custom tunes from scratch
- Edit and customize tunes from the online database
- Locked to one car
- Unlimited reflashes
Order Summary
Are you a professional tuner, e-tuner or a potential reseller?
Contact us to learn more about special terms, pricing and collaboration possibilities.
Specifications
VersaTuner Tuning Software for
2009-2015 Mazda MX-5 Miata (Gen 3, NC2/NC3)
2.0l MZR LF-VE
Software & Hardware Requirements
- A computer running Microsoft Windows 10 or 11
- OBDLink SX/EX or any other J2534 PassThru compatible cable for wired flashing and data logging
- OBDLink LX/MX/MX+ bluetooth OBD-II adapter for wireless flashing and data logging
- Any generic ELM327 bluetooth OBD-II adapter for wireless data logging only
- At least 400 MB of free disk space
- Internet connection for activation and online tune database access
Licensing
| License type: | Personal, flashing limited to one car (specific VIN) Contact for multi-VIN licensing options. |
| Install on multiple computers: | |
| Free minor updates: | |
| Transfer license to the future owner of your car: | |
| Transfer license to another car: | (certain exceptions apply, contact us for details) |
Connectivity
| Supported hardware interfaces (wired): |
|
| Supported hardware interfaces (wireless): |
|
| Connection method: | OBD-II port on the car, USB port or Bluetooth on the computer |
| No ECU removal necessary: | |
| No need to splice wires: |
Reflashing/remapping
| Flashing method: | ISO/SAE standard |
| Time for initial installation on the car: | around 30-60 minutes |
| Time for each subsequent reflash: | around 2-4 minutes |
| Automatic recovery after flashing failure: | |
| Automatic backup of stock calibration: | |
| Possibility to go back to stock calibration: | |
| Number of guaranteed reflashes: | 100+ (depending on the ECU) |
ECU control
| Number of modifiable tables: | 110+ |
| Air/fuel mixture control: | |
| Ignition timing control: | |
| Throttle control: | |
| Variable valve timing control: | |
| Idle RPM control: | |
| Rev limiter control: | |
| Speed limiter control: | |
| Sensor calibration: | |
| Compatibility with non-US ECUs: | |
| Launch control: | |
| No lift shifting: |
Data logging
| Logging speed: | 50 samples/second (on VersaLink) |
| Smart logging resolution management: | |
| Measurable parameters: | 30+, including Mazda-specific |
| Measurement units: | Fully customizable |
| Alerts: | Visual and audible, configurable thresholds |
| Logging duration: | Only limited by disk space |
Diagnostics
| Number of generic DTCs recognized: | 4000+ |
| Number of Mazda-specific DTCs recognized: | 1400+ |
| Read/clear codes from other modules: |
VersaTune is a company founded by two Mazdaspeed6 owners who wanted to build a better tool to unlock the true potential of the Mazdaspeed MZR DISI 2.3l engine. As owners of Mazdaspeed vehicles and long time members of the Mazdaspeed tuning community, we are dedicated to making the most of Mazda vehicles. Over the years we have gained extensive knowledge of tuning Mazda performance vehicles. We are using that knowledge and our passion for performance to unlock the full potential of other Mazda vehicle platforms. We hope you share our passion for performance and that you find VersaTuner Mazda tuning products help you fulfill your performance dreams.
- VersaTune, LLC
-
General: info@versatune.net
Support: support@versatune.net -
Phone/fax: +1-248-782-6299
Emails or contact form inquiries are preferred -
54365 Birchwood Dr.
South Lyon, MI 48178, United States
