VersaTuner

ECU tuning/remapping software for:

2006-2007 Mazdaspeed6, Mazda 6 MPS or MazdaSpeed Atenza

Supported engines: 2.3l MZR DISI Turbo (all regions)

Mazdaspeed6/Mazda 6 MPS Tuning Made Easy

VersaTuner has been carefully designed to be easy to understand for first time users and at the same time allows experienced tuners to work efficiently. All features are accessible from one Windows app with a sleek and modern user interface. Guides and wizards lead you through the important processes. The UI is optimized both for touch-based use on tablets as well as laptops and desktop PCs.

Safe and Reliable

VersaTuner is a true reflashing (remapping/chip tuning) solution for the Mazdaspeed6/Mazda 6 MPS, not a "piggyback" controller. No wires need to be spliced and all built-in safety features of the ECU are retained. It uses the same flashing methods that are used by dealerships when updating your ECU. Built in recovery feature can flash the ECU even in the unlikely event of power failure. Your stock calibration is backed up, so you can go back to stock at any time.

Online Tune Database

A growing selection of prebuilt Mazdaspeed6/Mazda 6 MPS tunes is available right from the app. If you have a stock or mildly modified vehicle, flash a suitable tune with a couple of clicks and enjoy. All our tunes can be downloaded and edited and serve as a great starting point for custom or high power tunes. With our prebuilt tunes, Mazdaspeed6/Mazda 6 MPS tuning has never been easier!

Tune Editor

VersaTuner includes an advanced tune editor allowing you to edit a multitude of tables, maps and constants and customize existing or create custom tunes for your Mazdaspeed6/Mazda 6 MPS. It comes with a ton of productivity features, such as tune comparison, visualization, interpolation and automated translation of descriptions to 110+ languages.

Dashboard & Log Viewer

Virtual dashboard allows you to view and record all the vital engine parameters simultaneously. Analyze recorded logs later using a graphical log viewer or export them to Excel or Virtual Dyno.

Diagnostics

Read and clear DTCs from multiple modules, not just your engine ECU. A vast number of standard and Mazda-specific DTCs is supported.

Features & Extras

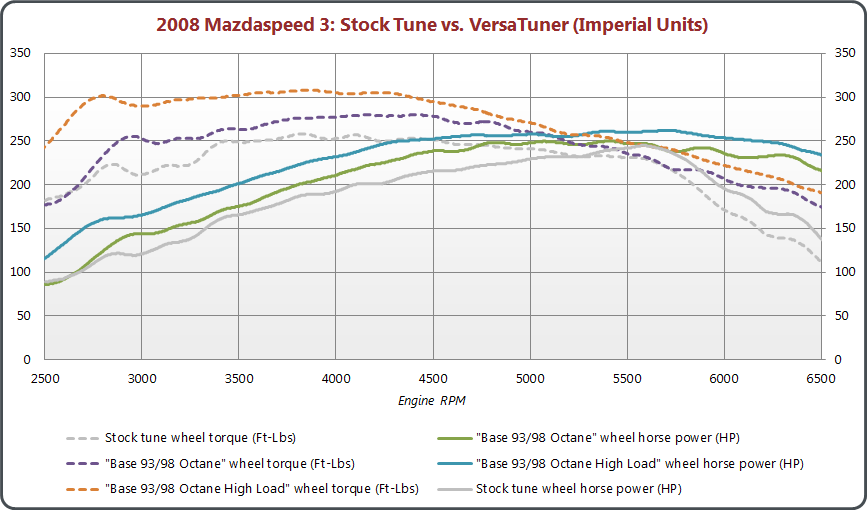

More Power, Faster Acceleration

VersaTuner allows you to safely and easily increase the horsepower and torque of your engine. That results in faster launches and better 0-60/0-100 times.

After driving a tuned car you will never want to go back to stock again!*

* going back to stock only takes a couple of minutes with VersaTuner, when needed

Full Potential of Modifications

Have you fitted an uprated intake or intercooler? A bigger turbo and exhaust?

On modern cars, upgrading parts alone will not have a significant effect unless accompanied by changes in ECU tuning. VersaTuner allows you to realize the full potential of your mods. Update the tune easily as you add new parts in the future.

Launch Control & No Lift Shifting

Perfect launches have never been easier. VersaTuner limits the launch RPMs so that the only thing you need to worry about is releasing the clutch at the right moment. With no lift shifting, you can go through gears without releasing the accelerator and loosing boost. All settings are fully adjustable!

* manual transmission only

MegaSpool

A Mazdaspeed/Mazda MPS tuning first. Now even the biggest turbos can be fully spooled at launch for immediate boost and power. MegaSpool provides configurable timing retard during launch control and no lift shifting. As a bonus, it also sounds awesome!

E85 Tuning

VersaTuner includes all necessary tables to allow your car to properly start and run on E85 ethanol fuel. A handy E85 calculator helps with calculating the right values depending on the blend you use.

SWAS Disable

You can now disable all torque limiters, including traction control and torque vectoring due to steering angle sensor (SWAS) input. Get full power of the engine delivered to the wheels in every gear, in any road conditions, even when cornering.

Extended Tables

Forget about the load cap in the ECU, VersaTuner is the only tuning solution for MZR DISI platform that allows precise tuning to loads of 4.0 and 8000 RPM.

Push the Limits

  • Change the speed limiter
  • Change the rev limiter
  • Open throttle till redline
  • Make accelerator pedal more responsive
  • Use large turbos, MAP sensors and MAF housings

Fix Issues

  • Eliminate stutter when shifting
  • Fix turbo smoking issues by adjusting idle RPM
  • Fix MAF calibrations skewed by aftermarket intakes
  • Disable DTCs when you remove parts like EGR or VTCS for track use

Special Tunes

Anti-theft tune will prevent the car from starting and keep the intruder confused, offering you peace of mind when you need to leave the car for a long time.

Valet tune significantly reduces the power and speed of the car and is perfect for those situations when someone needs to borrow your precious vehicle.

Available Mazdaspeed6/Mazda 6 MPS Tunes

This is a list of currently available free VersaTuner tunes for 2006-2007 Mazdaspeed6, Mazda 6 MPS or MazdaSpeed Atenza. All these tunes can be flashed both with VersaTuner Lite and the full version. New tunes are regularly added based on demand. If you can't find a suitable tune, you can contact a professional tuner or an e-tuner working with VersaTuner. You can also create a custom tune yourself with the full version of VersaTuner, using any of these tunes as a starting point.

93US/98EU + Octane tune for moderately modified vehicles. CAI or modded air box are OK. Provides moderately increased boost, revised fuel and spark, and throttle is opened over an extended range.

93US/98EU + Octane tune for moderately modified vehicles. CAI or modded air box are OK. Provides significantly increased boost, revised fuel and spark, and throttle is opened over an extended range.

93US/98EU + Octane tune for stock or near stock vehicles. CAI or modded air box are OK. Stock DP is required. Provides significantly increased boost, revised fuel and spark, and throttle is opened over an extended range. Requires Grimmspeed BCS plumbed in Interrupt Mode

93US/98EU + Octane tune for stock or near stock vehicles. CAI or modded air box are OK. Stock DP is required. Provides moderately increased boost, revised fuel and spark, and throttle is opened over an extended range.

93US/98EU + Octane tune for stock or near stock vehicles. Stock DP is required. Provides moderately increased boost, revised fuel and spark, and throttle is opened over an extended range. Includes MAF calibration for 3 inch / 76mm MAF Housing

91US/95EU + Octane tune for stock or near stock vehicles. CAI and Turbo Inlet Pipe are OK. Stock DP is required. Provides slightly increased boost, revised fuel and spark, and throttle is opened over an extended range. Boost control adjusted for CAI/SRI and TIP.

91US/95EU + Octane tune for stock or near stock vehicles. CAI or modded air box are OK. Stock DP is required. Provides slightly increased boost, revised fuel and spark, and throttle is opened over an extended range.

93US/98EU + Octane tune for stock or near stock vehicles. Stock DP is required. Provides moderately increased boost, revised fuel and spark, and throttle is opened over an extended range. Includes MAF calibration for AEM/MAZDASPEED CAI

93US/98EU + Octane tune for stock or near stock vehicles. CAI or modded air box are OK. Stock DP is required. Provides significantly increased boost, revised fuel and spark, and throttle is opened over an extended range.

93US/98EU + Octane tune for stock or near stock vehicles. CAI or modded air box are OK. Stock DP is required. Provides moderately increased boost, revised fuel and spark, and throttle is opened over an extended range. Requires Grimmspeed BCS plumbed in Interrupt Mode

Improved fuel economy at the expense of a slight reduction in peak performance.

Substantially reduced output. 5000 RPM rev limiter. 100 MPH / 160 km/h speed limiter.

Starts, Runs for 2 seconds, then stalls.

Fully opens up the throttle plate till redline.

Editable Tables and Constants

Full version of VersaTuner includes a tune editor that allows you to change the aspects of your Mazda ECU operation related to power delivery and fuel efficiency. Tuning your Mazdaspeed6/Mazda 6 MPS ECU is done by changing the tables and constants that the ECU uses internally to calculate load targeting, fueling, injection, ignition, interpret sensor values, etc.

A list of all currently available tables and constants (also known as maps) for tuning your Mazdaspeed6/Mazda 6 MPS ECU is provided below. As we continue to analyze the ECU logic and develop new tunes, we may make new maps available.

  • Absolute Rev Limiter - 1 (1D)
  • Absolute Rev Limiter - 2 (1D)
  • Absolute Rev Limiter - 3 (1D)
  • Closed Loop Load Limit 1 (2D)
  • Closed Loop Load Limit 2 (2D)
  • Closed Loop Load Limit 3 (2D)
  • Closed Loop Open Loop APP Threshold 1 (2D)
  • Closed Loop Open Loop APP Threshold 2 (2D)
  • Closed Loop Open Loop APP Threshold 3 (2D)
  • Closed Loop Open Loop APP Threshold 4 (2D)
  • Closed Loop Open Loop APP Threshold 5 (2D)
  • Closed Loop Open Loop Load Threshold 1 (2D)
  • Closed Loop Open Loop Load Threshold 2 (2D)
  • Closed Loop Open Loop Load Threshold 3 (2D)
  • Closed Loop Open Loop Load Threshold 4 (2D)
  • Closed Loop Open Loop Transition Timer 1 (1D)
  • Closed Loop Open Loop Transition Timer 2 (1D)
  • Closed Loop Open Loop Transition Timer 3 (1D)
  • Error Condition Load Limit (2D)
  • Load Limit Force Spark Retard (2D)
  • Load Threshold Unk (2D)
  • MAF Volts Range Upper Limit Check (1D)
  • Maximum Spark Timing (1D)
  • Min Desired Lambda/AFR (1D)
  • Minimum Spark Timing 1 (1D)
  • Minimum Spark Timing 2 (1D)
  • Minimum Spark Timing 3 (1D)
  • Minimum Spark Timing 4 (1D)
  • Neutral/Reverse Max Load High BAT (1D)
  • Neutral/Reverse Max Load Low BAT (1D)
  • Operating Load Limit 1 (2D)
  • Operating Load Limit 2 (2D)
  • Overboost Protection Fuel Cut (3D)
  • Overboost Protection Throttle Reduction (2D)
  • Overload Protection Fuel Cut (3D)
  • Rev Limiter Normal (1D)
  • Rev Limiter-unk1 (1D)
  • Rev Limiter-unk2 (1D)
  • RPM Range Upper Limit Check (1D)
  • Speed Limiter - Fuel Cut (1D)
  • Speed Limiter - Throttle Close (1D)
  • Speed Limiter Threshold - Fuel Cut (1D)
  • Speed Limiter Threshold - Throttle Close (1D)
  • APP Mapping 1st Gear (2D)
  • APP Mapping 2nd Gear (2D)
  • APP Mapping 3rd Gear (2D)
  • APP Mapping 4th Gear (2D)
  • APP Mapping 5th Gear (2D)
  • APP Mapping 6th Gear (2D)
  • APP Mapping Neutral (2D)
  • APP Multiplier Barometer Adjustment (2D)
  • APP Multiplier Speed Adjustment (2D)
  • BCS DC Adjustment - Boost Limit Exceeded (2D)
  • BCS DC Adjustment Barometer (2D)
  • BCS DC Adjustment Battery Voltage (2D)
  • BCS DC Adjustment Boost Target Correction (Boost Targeting Mode) (2D)
  • BCS DC Adjustment IAT (2D)
  • BCS DC Adjustment Limit - Decrease (1D)
  • BCS DC Adjustment Limit - Increase (1D)
  • BCS DC Base Extended (3D)
  • Boost Limit Barometer Adjustment (3D)
  • MAP Targets (Boost Targeting Mode) (3D)
  • Fan On Engine Coolant Temperature (2D)
  • Fan On Voltage Adjustment (2D)
  • Closed Loop AFR Target Extended (3D)
  • Cold Cranking and Afterstart Enrichment (2D)
  • Cold Cranking and Afterstart Enrichment Decrement (2D)
  • Decel Fuel Cut Requested Load Threshold (2D)
  • Decel Fuel Cut Requested Load Threshold Additive (2D)
  • Fuel Pressure Max by ECT (2D)
  • Fuel Pressure Overall Max (1D)
  • Fuel Pressure Target 1 (3D)
  • Fuel Pressure Target 2 (3D)
  • Fuel Pressure Target 3 (3D)
  • Fuel Specific Gravity (1D)
  • LTFT Adjustment ECT (2D)
  • LTFT Partition 1 (1D)
  • LTFT Partition 2 (1D)
  • LTFT Partition 3 (1D)
  • LTFT Partition 4 (1D)
  • LTFT Partition 5 (1D)
  • LTFT Partition 6 (1D)
  • Max Injector DC (1D)
  • Open Loop Part Throttle AFR Target Knock Present Extended (3D)
  • Open Loop Part Throttle AFR Target Normal Extended (3D)
  • Open Loop Part Throttle AFR Target Overload Extended (3D)
  • Open Loop WOT AFR Target Knock Present Extended (2D)
  • Open Loop WOT AFR Target Normal Extended (2D)
  • Open Loop WOT AFR Target Overload Extended (2D)
  • Shift Related Timer Unk 1 (3D)
  • Warmup Enrichment (2D)
  • Warmup Enrichment Decrement (2D)
  • Effective Final Drive - 1st - 4th (1D)
  • Effective Final Drive - 5th - 6th (1D)
  • Gear Ratio - 1st (1D)
  • Gear Ratio - 2nd (1D)
  • Gear Ratio - 3rd (1D)
  • Gear Ratio - 4th (1D)
  • Gear Ratio - 5th (1D)
  • Gear Ratio - 6th (1D)
  • Idle Ignition Timing Adjustment Desired RPM Correction - In Gear (2D)
  • Idle Ignition Timing Adjustment Desired RPM Correction - Neutral 1 (2D)
  • Idle Ignition Timing Adjustment Desired RPM Correction - Neutral 2 (2D)
  • Idle Ignition Timing Adjustment Desired RPM Correction - Neutral 3 (2D)
  • Idle RPM - AC ON - In Gear (2D)
  • Idle RPM - AC ON - Neutral (2D)
  • Idle RPM - In Gear (2D)
  • Idle RPM - Neutral (2D)
  • Abnormal Max Ignition Timing (3D)
  • Closed Loop Base Timing Abnormal (3D)
  • Closed Loop Base Timing Abnormal Overload (3D)
  • Closed Loop Base Timing Normal Extended (3D)
  • Closed Loop Base Timing Normal Overload Extended (3D)
  • Closed Loop Max Ingnition Timing Extended (3D)
  • High BAT/ECT Retard Knocking (3D)
  • High BAT/ECT Retard Multiplier 1 (3D)
  • High BAT/ECT Retard Multiplier 2 (3D)
  • High BAT/ECT Retard No Knock (3D)
  • Ignition Retard Table Possibly Shift Related (3D)
  • Knock Retard Additive (3D)
  • Knock Retard Decrement Step Size 1 (1D)
  • Knock Retard Decrement Step Size 2 (1D)
  • Knock Retard Decrement Step Size 3 (3D)
  • Knock Retard Limit (2D)
  • Knock Retard Multiplier (3D)
  • Knock Retard Threshold Max RPM (1D)
  • Knock Retard Threshold Min ECT (1D)
  • Knock Retard Threshold Min Load 1 (2D)
  • Knock Retard Threshold Min Load 2 (2D)
  • Knock Retard Threshold Min RPM (1D)
  • Knock Retard Timer Decrement Step Size 1 (1D)
  • Knock Retard Timer Decrement Step Size 2 (1D)
  • Open Loop Base Timing Abnormal (3D)
  • Open Loop Base Timing Abnormal Overload (3D)
  • Open Loop Base Timing Normal Extended (3D)
  • Open Loop Base Timing Normal Overload Extended (3D)
  • Open Loop Max Ignition Timing Extended (3D)
  • Overload Retard (3D)
  • Unk Retard Step Size (3D)
  • APP Requested Load Knocking Extended (3D)
  • APP Requested Load Normal Extended (3D)
  • APP Requested Load Overload Extended (3D)
  • BCS DC Adjustment - Load Target Correction - Incremental (2D)
  • BCS DC Adjustment - Load Target Correction - Initial (2D)
  • Load Targets (Unused) (3D)
  • Per Gear Requested Load Limit - High BAT Flag Lower Limit (1D)
  • Per Gear Requested Load Limit - High BAT Flag Upper Limit (1D)
  • Requested Load - 1st Gear Limit High BAT (2D)
  • Requested Load - 1st Gear Limit Low BAT (2D)
  • Requested Load - 2nd Gear Limit High BAT (2D)
  • Requested Load - 2nd Gear Limit Low BAT (2D)
  • Requested Load - 3rd Gear Limit High BAT (2D)
  • Requested Load - 3rd Gear Limit Low BAT (2D)
  • Requested Load - 4th Gear Limit High BAT (2D)
  • Requested Load - 4th Gear Limit Low BAT (2D)
  • Requested Load - 5th Gear Limit High BAT (2D)
  • Requested Load - 5th Gear Limit Low BAT (2D)
  • Requested Load - 6th Gear Limit High BAT (2D)
  • Requested Load - 6th Gear Limit Low BAT (2D)
  • Requested Load Limit Overall (1D)
  • Requested Load Limit RPM (2D)
  • Requested Load Limits Baro Specific (3D)
  • Requested Load Multiplier Accel/Decel Adjustment 1st - 2nd Gear Normal (3D)
  • Requested Load Multiplier Accel/Decel Adjustment 1st - 2nd Gear with APP Increase (3D)
  • Requested Load Multiplier Accel/Decel Adjustment 3rd Gear Normal (3D)
  • Requested Load Multiplier Accel/Decel Adjustment 3rd Gear with APP Increase (3D)
  • Requested Load Multiplier Accel/Decel Adjustment 4th Gear Normal (3D)
  • Requested Load Multiplier Accel/Decel Adjustment 4th Gear with APP Increase (3D)
  • Requested Load Multiplier Accel/Decel Adjustment 5th-6th Gear Normal (3D)
  • Requested Load Multiplier Accel/Decel Adjustment 5th-6th Gear with APP Increase (3D)
  • Volumetric Efficiency - VVT Modifier (3D)
  • Volumetric Efficiency (3D)
  • MAF Calibration 1 (2D)
  • MAF Calibration 2 (2D)
  • MAP Scale Additive - DTC Reporting (1D)
  • MAP Scale Additive - ECU Boost Mgmt (1D)
  • MAP Scale Additive - Logging (1D)
  • MAP Scale Base Multiplier - DTC Reporting (1D)
  • MAP Scale Base Multiplier - ECU Boost Mgmt (1D)
  • MAP Scale Base Multiplier - Logging (1D)
  • MAP Scale Second Multiplier - DTC Reporting (1D)
  • MAP Scale Second Multiplier - ECU Boost Mgmt (1D)
  • MAP Scale Second Multiplier - Logging (1D)
  • High RPM Shift Retard - RPM (2D)
  • High RPM Shift Retard - RPM vs. Gear (3D)
  • High RPM Shift Retard APP Threshold (1D)
  • High RPM Shift Retard Multiplier (3D)
  • High RPM Shift Retard Threshold RPM Base (2D)
  • High RPM Shift Retard Threshold RPM Threshold (2D)
  • High RPM Shift Retard Threshold Unk Base (2D)
  • High RPM Shift Retard Threshold Unk Threshold (2D)
  • High RPM Shift Retard Timer - 1 (2D)
  • High RPM Shift Retard Timer - 2 (2D)
  • DBW Throttle Knock Extended (3D)
  • DBW Throttle Normal Extended (3D)
  • DBW Throttle Overload Extended (3D)
  • Intake Cam Advance (VVT) Extended (3D)

Logging Parameters

When you need to analyze how your Mazda performs before or after ECU tuning, you will drive the car and record the values of different parameters. All editions of VersaTuner (even Free!) include important Mazda-specific logging parameters that are available to official Mazda service centers and are not usually included in cheap universal logging devices or apps.

Here is a list of all currently available data logging parameters (also known as PIDs) for your Mazdaspeed6/Mazda 6 MPS.

  • Boost air temperature
  • Boost pressure
  • Intake manifold absolute pressure
  • MAP sensor voltage
  • Wastegate control solenoid duty cycle
  • Actual equivalence/air to fuel ratio
  • Desired equivalence/air to fuel ratio
  • Desired fuel rail pressure
  • Fuel injection amount
  • Fuel injection pulse width
  • Fuel pressure sensor voltage
  • Fuel rail pressure
  • Injector duty cycle
  • Long term fuel trim
  • Narrow band oxygen sensor voltage
  • Short term fuel trim (primary sensor)
  • Short term fuel trim (secondary sensor)
  • Absolute load
  • Accelerator pedal position
  • Actual valve timing
  • Ambient air temperature
  • Barometric pressure
  • Catalyst temperature
  • Clutch pedal position
  • Control module voltage
  • Desired engine RPM
  • Desired throttle position
  • Engine coolant temperature
  • Engine RPM
  • Fan duty cycle
  • Intake air temperature
  • Mass airflow
  • Mass airflow sensor voltage
  • Neutral gear status
  • Relative throttle position
  • Vehicle speed
  • Ignition timing advance
  • Knock retard

Dyno Graphs

Car tested: 2008 Mazdaspeed3 (USDM)
Car modifications: None
Dyno type: Mustang dyno
Power measured: Wheel power
Fuel type: Pump gas, octane rating 93 (RON+MON)/2, equivalent to 98 RON
Reference tune: Factory tune
Target tunes: Base 93/98 Octane
Base 93/98 Octane High Load
from VersaTuner tune database, no additional changes applied.

Would you like to try VersaTuner tuning software yourself?

Download the demo version based on features available for Mazdaspeed6/Mazda 6 MPS.

The demo does not connect to the car, it only lets you evaluate the user experience.

Pricing

VersaTuner comes in different editions. You can choose the one that works best for you:

VersaTuner FreeLogging and diagnostics for everyone

  • Virtual dashboard with model-specific parameters
  • Sound and visual alerts to keep the car running safe
  • Record unlimited data logs
  • Visual data log analyzer
  • Read and clear DTCs
  • Works with all supported vehicles

VersaTuner Lite Reflash your car without breaking the bank

  • Includes all features of VersaTuner Free
  • Free online tune database
  • Flash published tunes
  • Flash tunes built by our professional tuning partners
  • Enable launch control/no lift shifting*
  • Disable unwanted DTCs
  • Locked to one car
  • Unlimited reflashes
  • Upgrade to full version at any time**
Top
Seller

VersaTuner Full custom tuning capability

  • Includes all features of VersaTuner Free and Lite
  • Tune editor with access to all tables and constants
  • Flash any tunes, including custom and unofficial
  • Create custom tunes from scratch
  • Edit and customize tunes from the online database
  • Locked to one car
  • Unlimited reflashes

Order Summary

Please select a product above to estimate the total cost.

Are you a professional tuner, e-tuner or a potential reseller?

Contact us to learn more about special terms, pricing and collaboration possibilities.

Specifications

2006-2007 Mazdaspeed6, Mazda 6 MPS or MazdaSpeed Atenza Tuning Software
2.3l MZR DISI Turbo (all regions)

Software & Hardware Requirements
  • A computer running Microsoft Windows 7, 8, 8.1 or 10
  • VersaLink (recommended), OBDLink SX or any other J2534 PassThru compatible cable for wired flashing and data logging
  • OBDLink LX, OBDLink MX bluetooth OBD-II adapter for wireless flashing and data logging
  • Any generic ELM327 bluetooth OBD-II adapter for wireless data logging only
  • At least 300 MB of free disk space
  • Internet connection for activation and online tune database access

IMPORTANT! Chinese Mini-VCI/MVCI J2534 vehicle interfaces (cables) are known to brick the ECU when flashing. Do NOT use them with VersaTuner.

Licensing
License type: Personal, flashing limited to one car (specific VIN)
Contact for multi-VIN licensing options.
Install on multiple computers:
Free minor updates:
Transfer license to the future owner of your car:
Transfer license to another car: (certain exceptions apply, contact us for details)
Connectivity
Supported hardware interfaces (wired):
  • VersaLink
  • OBDLink SX (beta)
  • Any SAE J2534 PassThru compatible cable/adapter
Supported hardware interfaces (wireless):
  • OBDLink LX Bluetooth
  • OBDLink MX Bluetooth
  • Generic ELM327 OBD-II Bluetooth adapters (low speed, data logging only)
Connection method: OBD-II port on the car, USB port or Bluetooth on the computer
No ECU removal necessary:
No need to splice wires:
Reflashing/remapping
Flashing method: ISO/SAE standard
Time for initial installation on the car: around 25 minutes
Time for each subsequent reflash: around 1 minute
Automatic recovery after flashing failure:
Automatic backup of stock calibration:
Possibility to go back to stock calibration:
Number of guaranteed reflashes: 100+ (depending on the ECU)
ECU control
Number of modifiable tables: 210+
Extended tables: up to 4.0 load and 8000 RPM
Sophisticated boost control:
Air/fuel mixture control:
Ignition timing control:
Throttle control:
Variable valve timing control:
Fuel pressure control:
Idle RPM control:
Rev limiter control:
Speed limiter control:
Sensor calibration:
Shift stutter elimination:
Disable traction control and torque vectoring due to steering wheel angle sensor (SWAS):
Ability to disable unwanted DTCs:
Ability to prevent fuel cut:
Ability to overcome load capping:
Ability to tune for E85:
Compatibility with non-US ECUs:
Launch control: with MegaSpool , fully configurable
No lift shifting: with MegaSpool , fully configurable
Data logging
Logging speed: 50 samples/second (on VersaLink)
Smart logging resolution management:
Measurable parameters: 30+, including Mazda-specific
Measurement units: Fully customizable
Alerts: Visual and audible, configurable thresholds
Logging duration: Only limited by disk space
Diagnostics
Number of generic DTCs recognized: 4000+
Number of Mazda-specific DTCs recognized: 1400+
Read/clear codes from other modules:
